This post will give you an idea about how to use your own handwritten digits images with Keras MNIST dataset.
If you don’t know how to build a model with MNIST data please read my previous article.

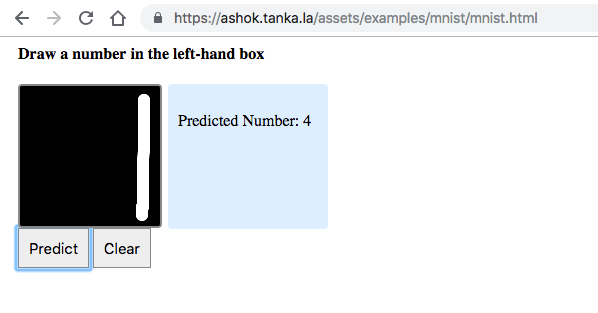

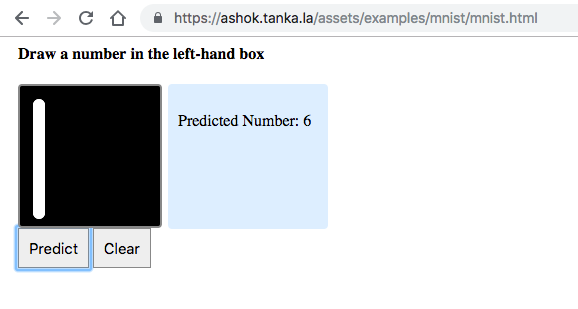

Recently one guy contacted me with a problem by saying that his trained model or my trained model is giving trouble in recognizing his handwritten digits. I tried to help him at the same time I tested my model too. I am able to replicate the issue.
It looks like overfit issue and also the images in Keras dataset are in center position so model trained like that. So I thought let’s tackle the problem by giving my own handwritten images.
In this process, I also realized giving one image doesn’t help in training we need to give a good number of images so that it can learn from them.
To do this we can use existing training model and train a new model using it through transfer learning but I am new to this section so I am going to try that later, for now, I tweaked my existing code a little to complete this job.
Without wasting much time Let’s get into the code
Let’s import the packages required to do this task
from keras.datasets import mnist from keras.models import Sequential from keras.layers import Dense from keras.layers import Dropout from keras.layers import Flatten from keras.layers.convolutional import Conv2D from keras.layers.convolutional import MaxPooling2D from keras.optimizers import Adam from keras.utils import np_utils from PIL import Image import numpy as np import os
Let’s load the Keras MNIST dataset first
# load data (X_train, y_train), (X_test, y_test) = mnist.load_data()
Now let’s reshape the data according to CNN expectations
# Reshaping to format which CNN expects (batch, height, width, channels) X_train = X_train.reshape(X_train.shape, X_train.shape, X_train.shape, 1).astype('float32') X_test = X_test.reshape(X_test.shape, X_test.shape, X_test.shape, 1).astype('float32')
It’s time for adding our own images to training and test data. For that below function will help you
# To load images to features and labels def load_images_to_data(image_label, image_directory, features_data, label_data): list_of_files = os.listdir(image_directory) for file in list_of_files: image_file_name = os.path.join(image_directory, file) if ".png" in image_file_name: img = Image.open(image_file_name).convert("L") img = np.resize(img, (28,28,1)) im2arr = np.array(img) im2arr = im2arr.reshape(1,28,28,1) features_data = np.append(features_data, im2arr, axis=0) label_data = np.append(label_data, [image_label], axis=0) return features_data, label_data
Basically, this function takes image label, image directory, features data, labels data as input.
It lists all files present in image directory and then checks whether it is png file or not(if you have jpg images then change the “.png” condition to “.jpg”).
Then loads the image and convert that to an array which is similar to
features data and adds the image array to it.
Takes image label and add that to label_data.
Once it adds all our images in that folder/directory to current dataset returns them back.
Now let’s give our own images directories to load them to existing dataset.
# Load your own images to training and test data X_train, y_train = load_images_to_data('1', 'data/mnist_data/train/1', X_train, y_train) X_test, y_test = load_images_to_data('1', 'data/mnist_data/validation/1', X_test, y_test)
Let’s normalize the data now.
# normalize inputs from 0-255 to 0-1 X_train/=255 X_test/=255
We have labels but those are not categorized. So let’s do it now.
# one hot encode number_of_classes = 10 y_train = np_utils.to_categorical(y_train, number_of_classes) y_test = np_utils.to_categorical(y_test, number_of_classes)
It’s time to create our model
# create model model = Sequential() model.add(Conv2D(32, (5, 5), input_shape=(X_train.shape, X_train.shape, 1), activation='relu')) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Conv2D(32, (3, 3), activation='relu')) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Dropout(0.5)) model.add(Flatten()) model.add(Dense(128, activation='relu')) model.add(Dropout(0.5)) model.add(Dense(number_of_classes, activation='softmax'))
Added Dropouts to make sure we don’t overfit the model
Let’s compile our model
# Compile model model.compile(loss='categorical_crossentropy', optimizer=Adam(), metrics=['accuracy'])
It’s time to train the model
# Fit the model model.fit(X_train, y_train, validation_data=(X_test, y_test), epochs=7, batch_size=200)
Kept 7 epochs because after 7th I didn’t see much accuracy improvements.
Our model is ready just to make sure whether our model trained properly or not let’s load an image in validation folder and check our model is performing well or not
img = Image.open('data/mnist_data/validation/1/1_2.png').convert("L") img = np.resize(img, (28,28,1)) im2arr = np.array(img) im2arr = im2arr.reshape(1,28,28,1) y_pred = model.predict_classes(im2arr) print(y_pred)
I got the output as
Congrats!!! Our model is trained with our own images too.
You will find this code(notebook) here.
Peace. Happy Coding.
6 thoughts on “Build the MNIST model with your own handwritten digits using TensorFlow, Keras, and Python”
img = Image.open(‘data/mnist_data/validation/1/1_2.png’).convert(“L”)
img = np.resize(img, (28,28,1))
im2arr = np.array(img)
im2arr = im2arr.reshape(1,28,28,1)
I tried this but I get all 0 for my image array, could you please advise?
Hi Khai Hong,
What accuracy you got?
Is it giving like that for this image or for every image?
Thanks a lot for the blog,
The code worked successfully and gave the correct result.
I have seen that you integrated personal dataset with MNIST.
Could you explain how it is possible to use my own dataset for training and testing without using MNIST dataset?
Hi Haval Sadeq,
I am glad you liked my blog. Skip below code part.
(X_train, y_train), (X_test, y_test) = mnist.load_data()
Need to write a bit of code around creating these variables then you can use your own dataset
Found your blog a few days ago and I have been enjoying coding along!
When running the last code the prediction always outputs “1” no matter which image file I enter and was hoping you could help.
Would you be able to tell me the structure of your directories?
